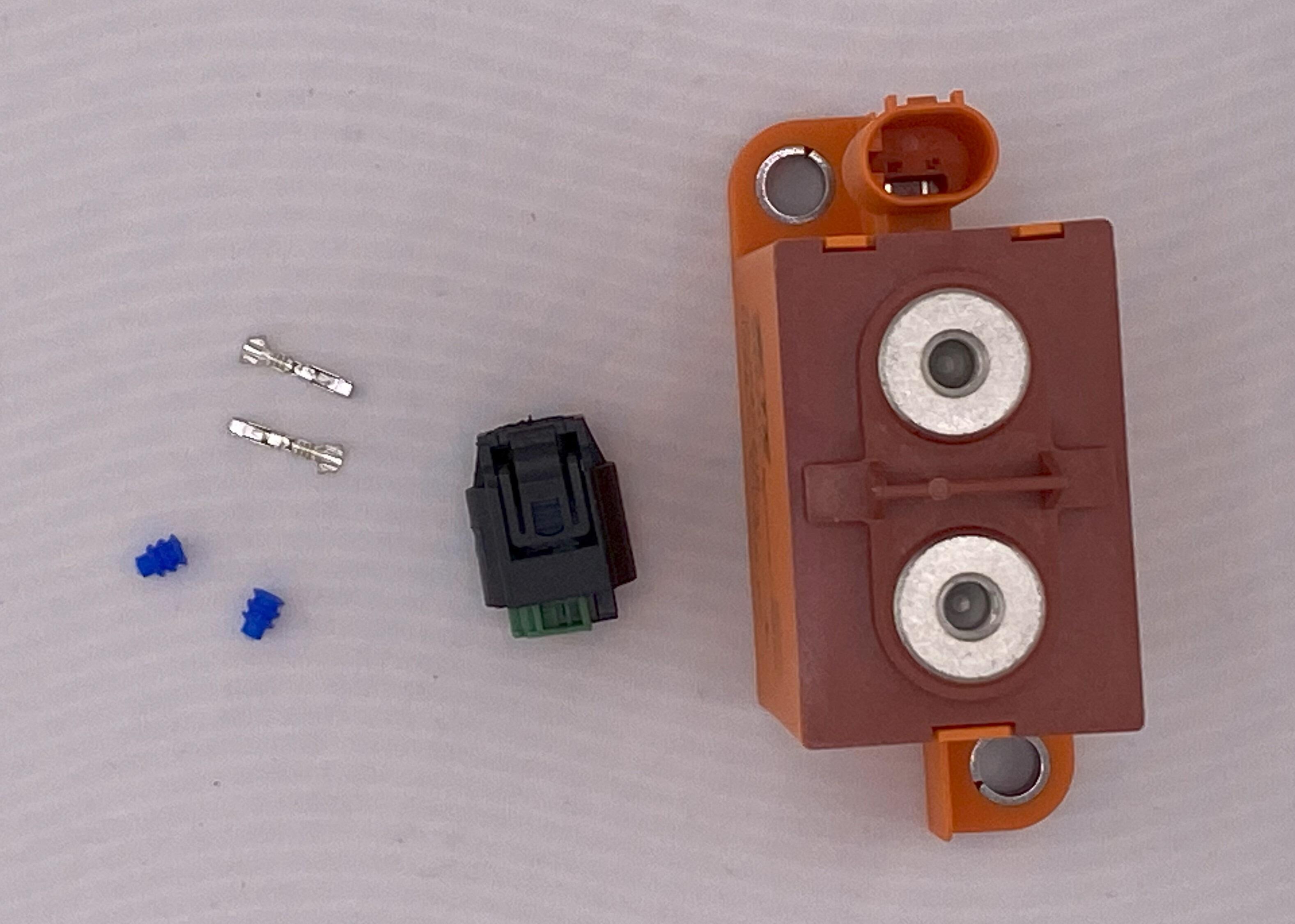

High Voltage Automotive EVC 175 Main Contactor

Specification

• Continuous current 175A
• Short circuit capability of 5kA
• Safe disconnection up to 2kA
• Dimensions: 70.3 x 50.9 x 34.3mm
• Fulfills IEC60664 insulation requirements
• Rated Coil Voltage (VDC) 12v

Features

• Based on proven technology
• Safe disconnection at altitudes above 5,500 metres
• Arc surpressing magnets
• Ideal for applications on hybrid and full EV Vehicles.
• Suitable for DC battery charging system.

Available CAD Files
