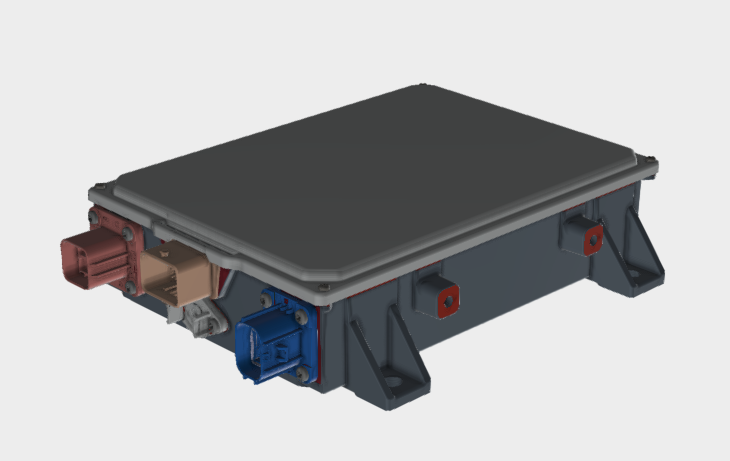

6.6Kw On-Board Charge Controller + 2.5Kw DCDC

Specification

• Input Voltage 90 - 264Vac
• Rated Input Voltage 220V AC
• Frequency Range 45-65Hz
• HV Output 240-450V DC, Max Output Current 22A
• LV Power 9 - 16V DC, Max output current 24A max
• HV Input 240 -450 VDC, Max input current 12A max

Features

• Installation in battery pack or vertical and cross beams
• Bi-directional - 220V AC output at 3kW
• Do not install on the electric motor
