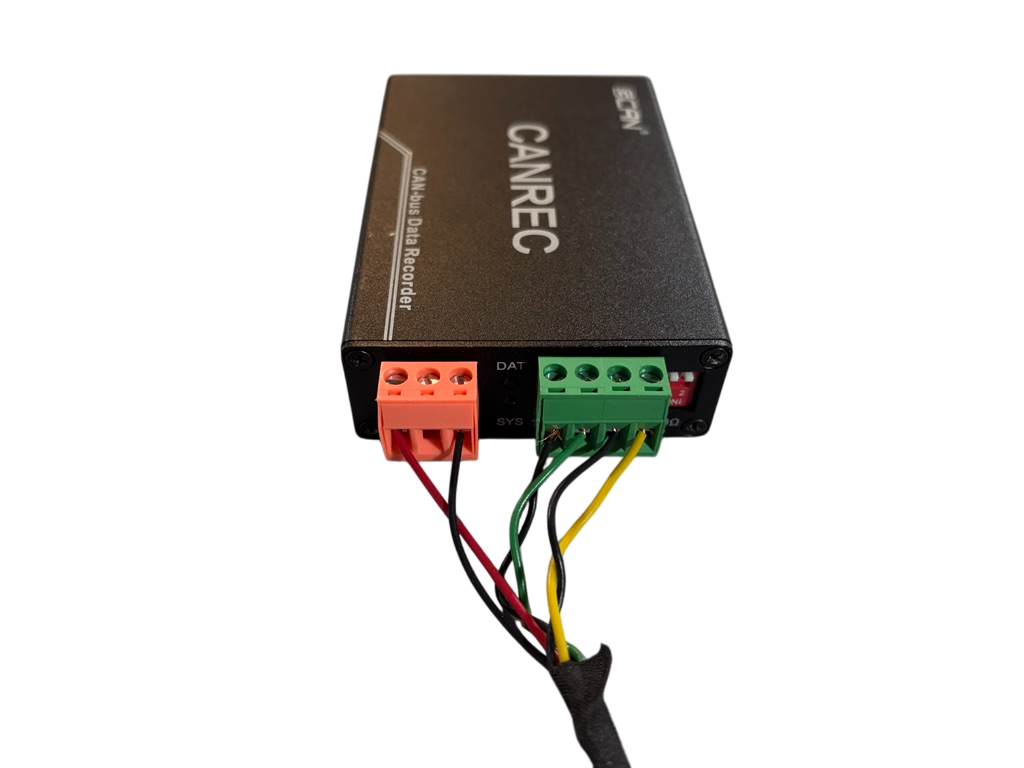

CAN-bus Data Recorder (2 Channel)

Specification (CDL010)

• Can-bus data recorder.
• Able to record 2 channels
• Suitable for historical data playback and error message analysis
• Requires external power supply (DC 9-30V, 100mA) and TF memory card
• Compliant with CAN specifications 2.0A(11-Bit ID) and 2.0B (29-Bit ID)
• CAN-Bus baud rate 10Kbps~1Mbps, set by code switch
• Extended operating temperature range from -40 to 85 °C
• Dimensions: (L) 102 mm * (W) 63mm * (H)23mm

Features

• Note: CAN recorder requires a 32G/128G/128G capacity TF memory card.
