400v PWM Air Conditioning Compressor

Specification

• Electric Scroll AC Compressor
• Displacement (ml/r): 34cc
• PWM control required
• Dimensions (mm): 260L x 150W x 180H
• Weight (kg): 6.56 (without oil)
• Speed range (rpm): 1000-6000
• Refrigerant Type; R134a
• Cooling Capacity (kW): 4.3
• Input Voltage Range: 312v - 400v
• Current(A) Max: 13

Features

• 12 Month warranty
• Refrigerant Oil; Zerol Ester 68SL 140 ml

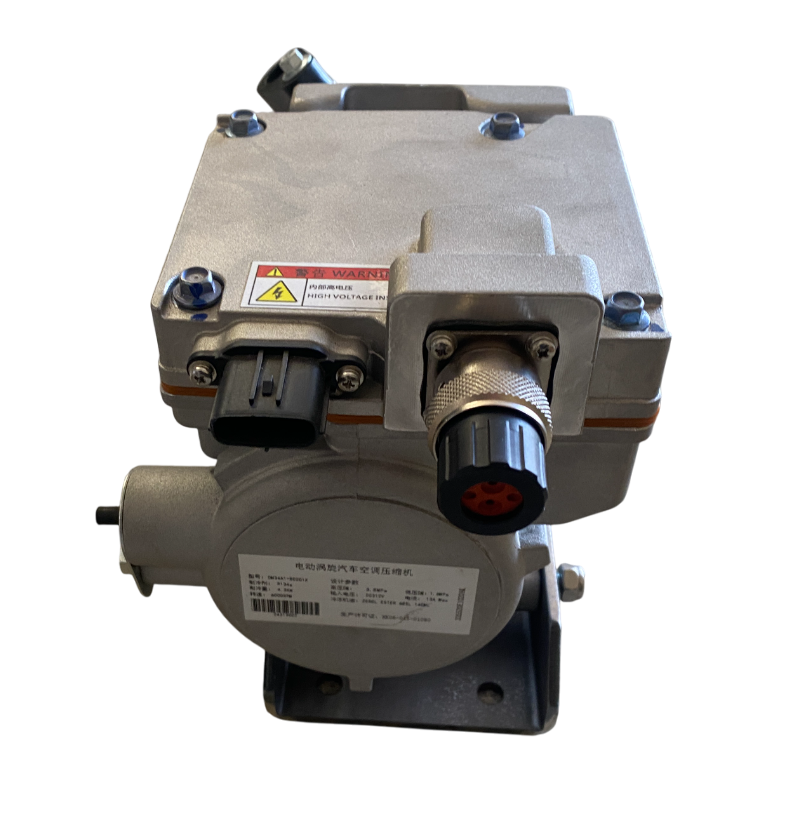

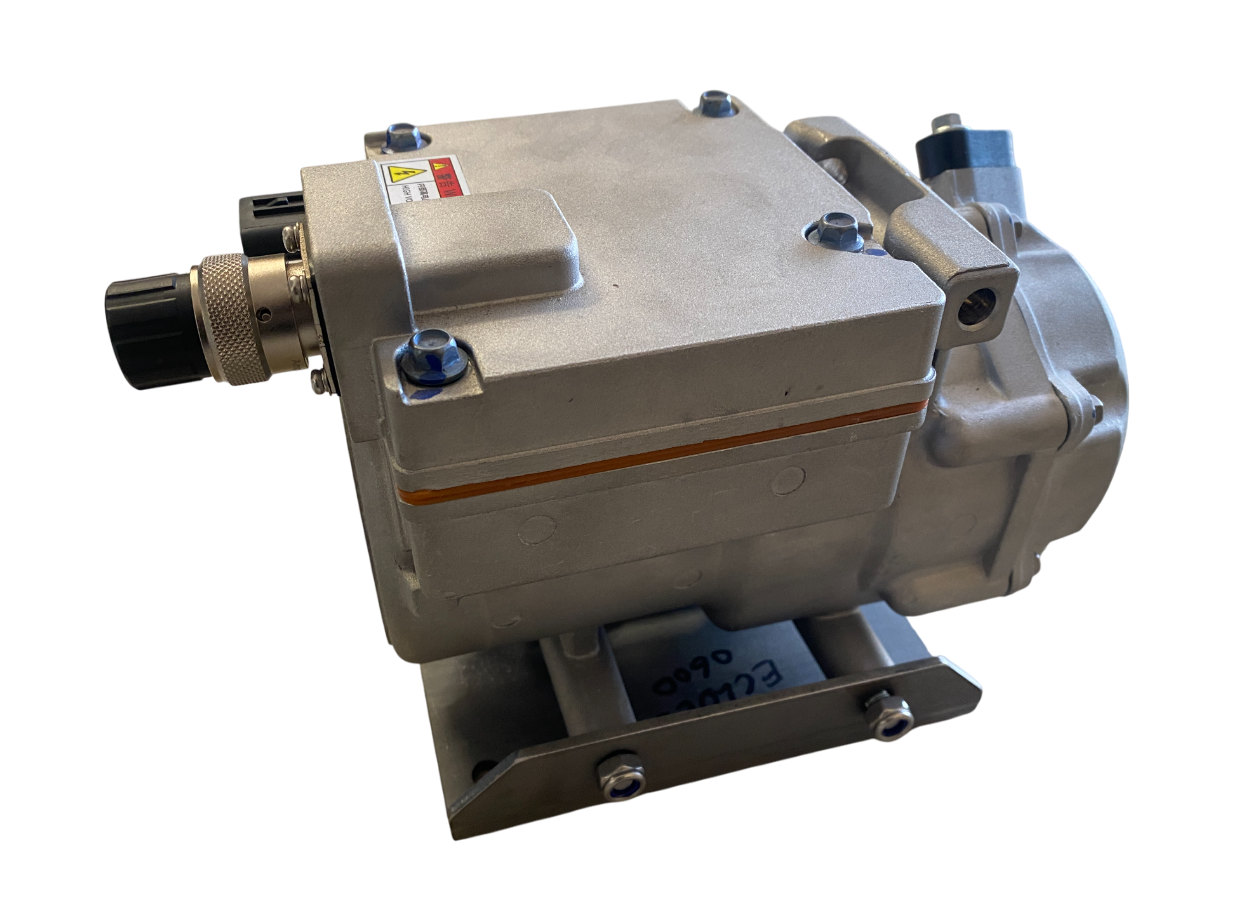

• Note: Mounting plate shown in the pictures available but does not come as standard.
