XPT EDS 240kW Integrated Motor Invertor

Specification

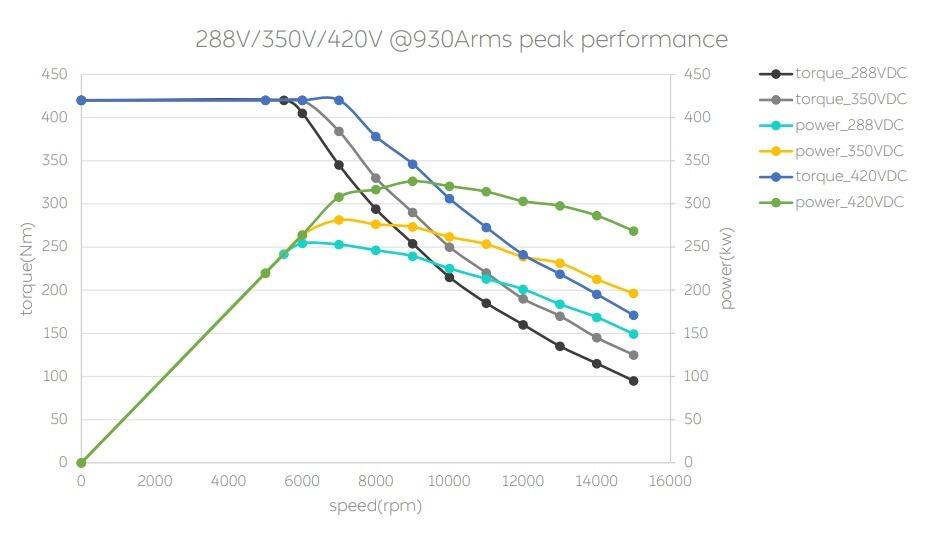

• Peak Power (10s) - 240kW
• Continuous Power - 60kW
• Peak Torque (10s) - 410Nm
• Continuous Torque - 120Nm
• Max Continuous Speed - 15,000 rpm
• Rated Voltage - 350V
• Operating Voltage Range - 240-420V
• Gear ration 9.56
• Operating temperature --40~85 degC
• IP Level - IP67

Features

• All in one package
• Front or Rear Wheel Application
• Transmission architecture - Parallel Axle
• Drive shaft stubs included
• HV cable to the battery box included (battery end will need to be cut to length and terminated)
• Low voltage connector and terminals
• 12 month warranty

Available CAD Files
