High Voltage Power Distribution Module (PDM)

Specification (PDU010)

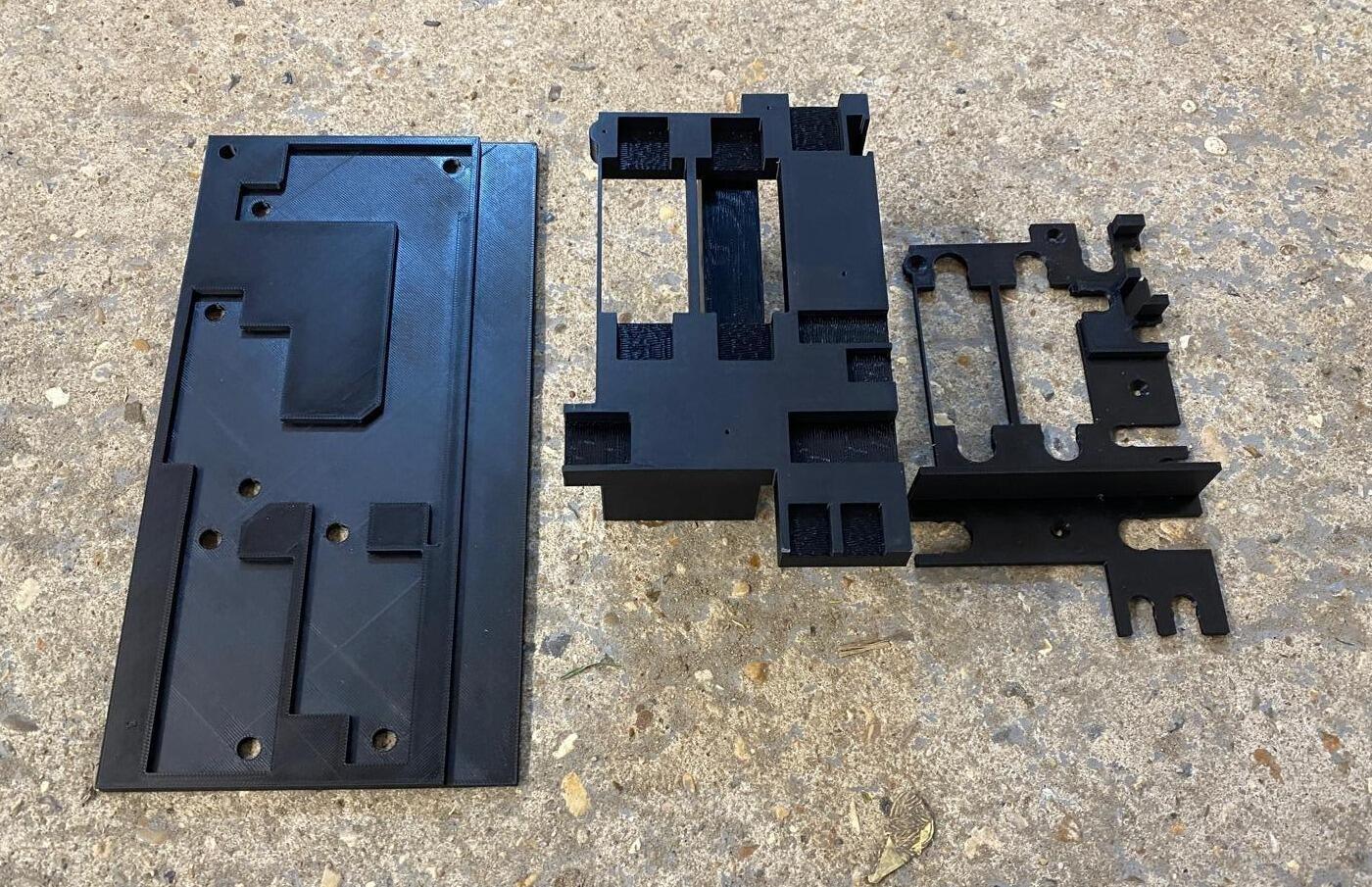

• Plastic and Copper parts to construct a compact high voltage power distribution unit (HV-PDU).
• When assembled the HV-PDU holds the main contactors, fuses, pre-charge system and shunt resistor.
• The unit is designed to hold the additional contactors for the 'fast charge (CCS) functionality.
• Kit includes laser cut bus bars and fixings.

Features

• Note this product is designed for the current range of EVCS contactors, fuses and shunt resistor.
• EVCS contactors, fuses and shunt resistor must be purchased separately.

Available CAD Files
