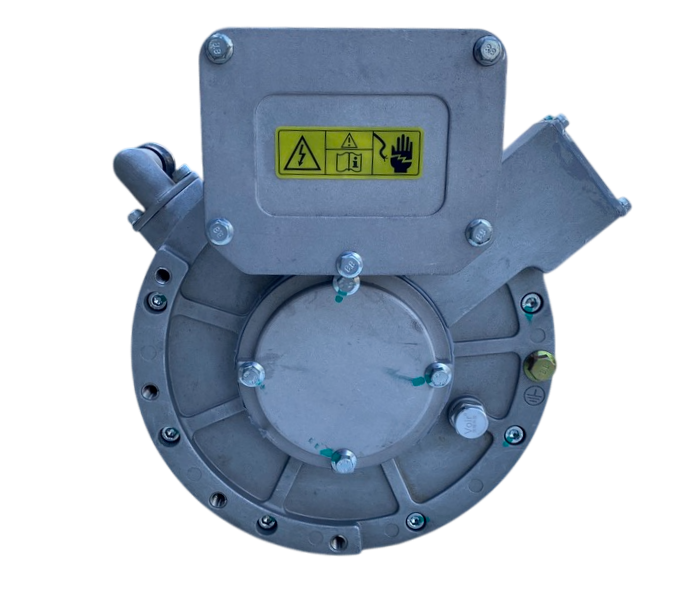

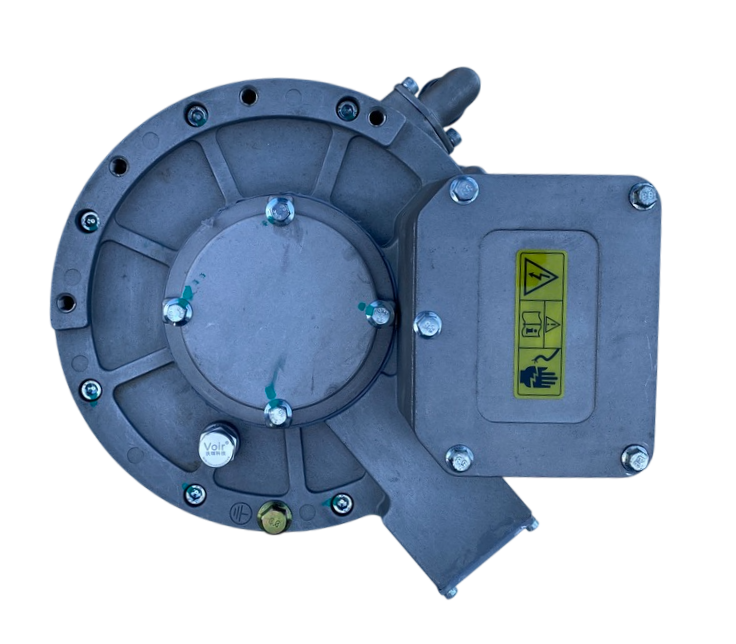

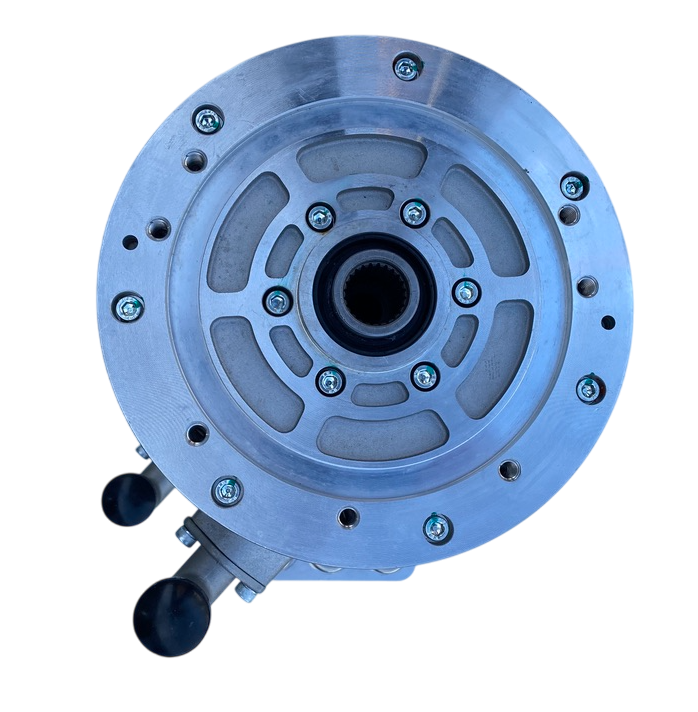

Max70 70kW 225Nm Motor/Inverter Kit

Specification

• DC voltage input 280-450 VDC
• Max peak power 70 kW
• Nominal power 30 kW
• Max torque 225 Nm
• Max RPM 9,000
• Protection level IP67
• Operating temperature -40 to +180 degrees Celsius
• Motor Cooling Method: Liquid

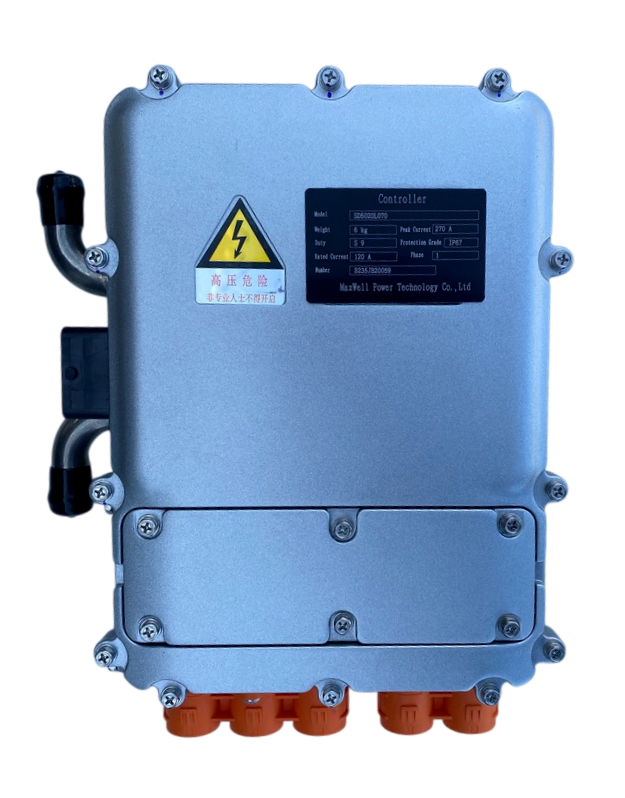

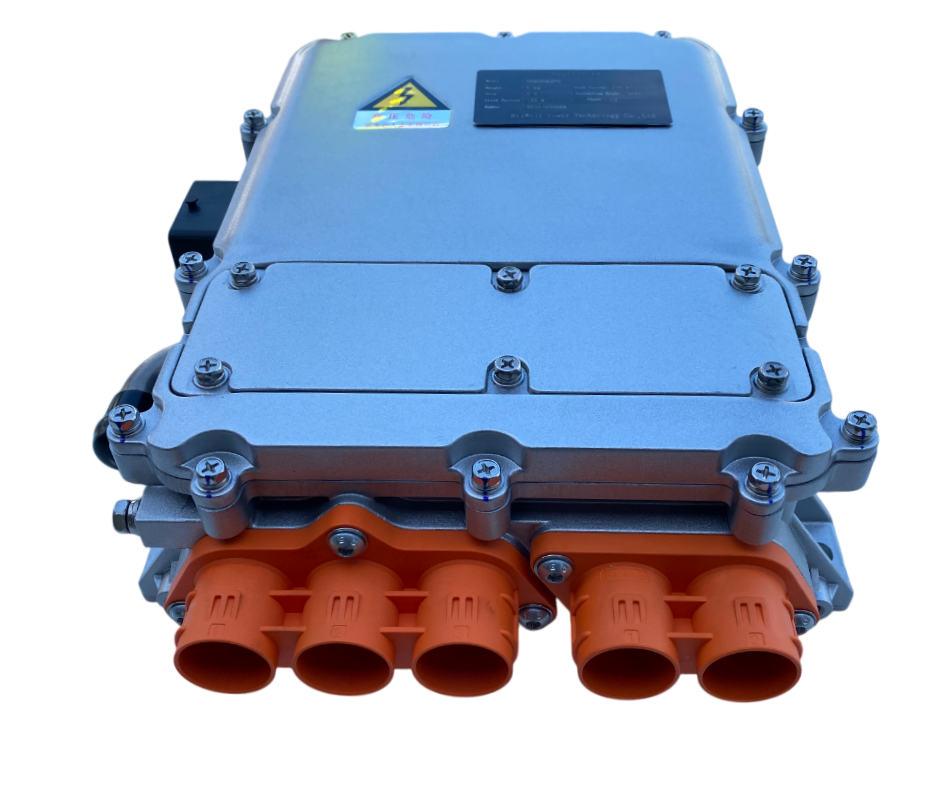

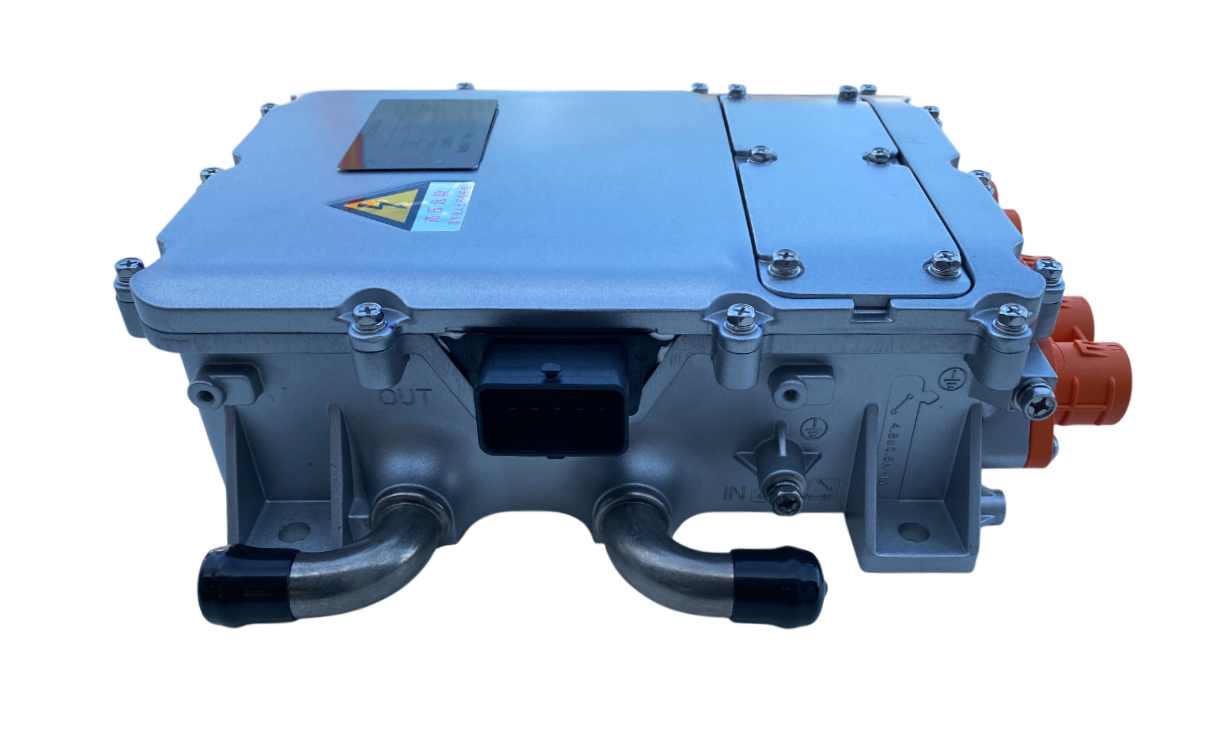

• Inverter Cooling Method: Liquid
• Weight: Motor : 38kg / Inverter : 10kg

Features

• Transmission and Direct Drive options available
• Ideal as an alternative to a HyPer 9 system
• Significant cost and performance advantages:

• Specification	EVCS - MAX070	HyPer 9 (Watercooled)
  Voltage Input	280-450v (High Voltage)	100-144v (Low Voltage)
  Peak Power	70kW	~50kW
  Nominal Power	30kW	~30kW
  Max Torque	225 Nm	~120 Nm
  Max RPM	9000	~8000
  Cooling	Liquid (Motor & Inverter)	Liquid (Motor)
  Operating Temp.	-40 to +180 C	-30 to +100 C
  Weight	Motor 38kg /  Inverter: 10kg	Motor & Controller ~41 kg
  Typical Cost	£3950	€5,700 (~£4900)

Available CAD Files
